Stainless Steel Honeycomb 3D Decorative Panels

ARTDSN supplies factory-direct stainless steel honeycomb decorative panels built around an aluminum honeycomb core bonded to a stainless steel face sheet. The face sheet is CNC-folded into geometric 3D shapes — triangles, envelopes, ripples, and custom patterns — that add depth, shadow play, and metallic reflection to flat walls and ceilings.

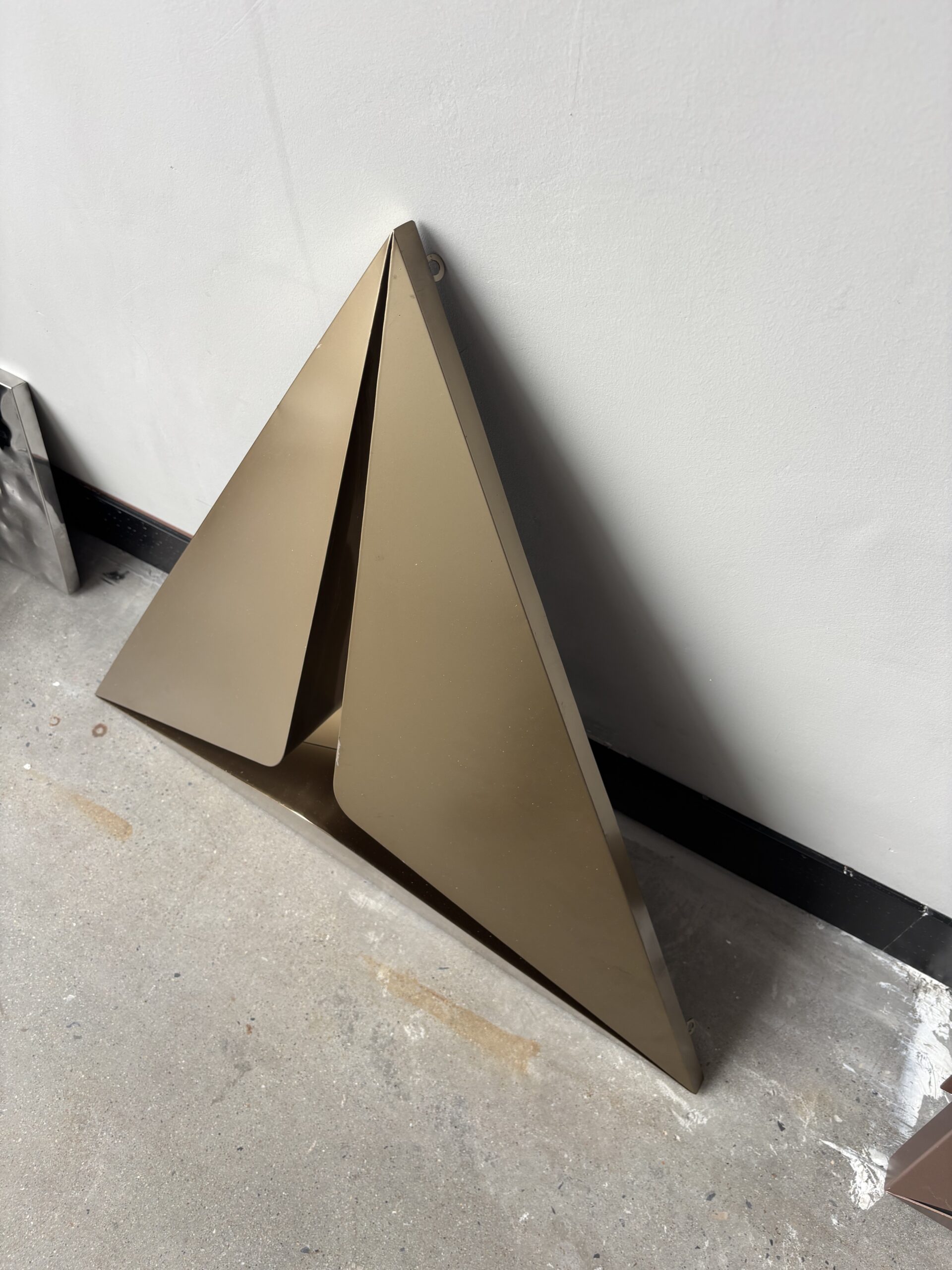

Bronze triangular folded stainless steel honeycomb decorative panel standing against a wall, showing geometric 3D relief. — Bronze triangular fold — brushed finish on folded stainless steel face sheet.

Why Stainless Steel Honeycomb Panels

Compared with solid stainless steel plate, stone, or aluminum composite, a honeycomb-backed stainless panel is dramatically lighter while keeping the same surface feel and rigidity. That single change makes it cheaper to ship, easier to hoist on site, and possible to install on ceilings and tall façades that a heavy slab could never reach.

The aluminum honeycomb core absorbs impact and resists denting, so panels keep their flat face even after handling on a busy construction site. The folded relief on the front is purely cosmetic — it does not weaken the panel — so designers can use aggressive 3D geometries without sacrificing structural safety.

Key Advantages

Lightweight — aluminum honeycomb core cuts weight by up to 70% versus solid stainless plate of the same size.
Rigid and flat — the bonded core prevents oil-canning; the face sheet stays perfectly flat between folds.
Fire-safe — stainless face + aluminum core is fully non-combustible and meets Class A interior finish requirements.
Custom 3D geometry — triangles, envelopes, ripples, hexagons, and bespoke folded patterns are produced on CNC folding brakes.
Multiple finishes — mirror 8K, brushed, PVD rose gold / champagne gold / bronze, anti-fingerprint, and etched textures.
Pre-engineered mounting — stainless brackets are factory-welded to the back so installation is a clip-and-fix job on site.
304 or 316 grade — 316L stainless is available for coastal, pool, or high-humidity projects.

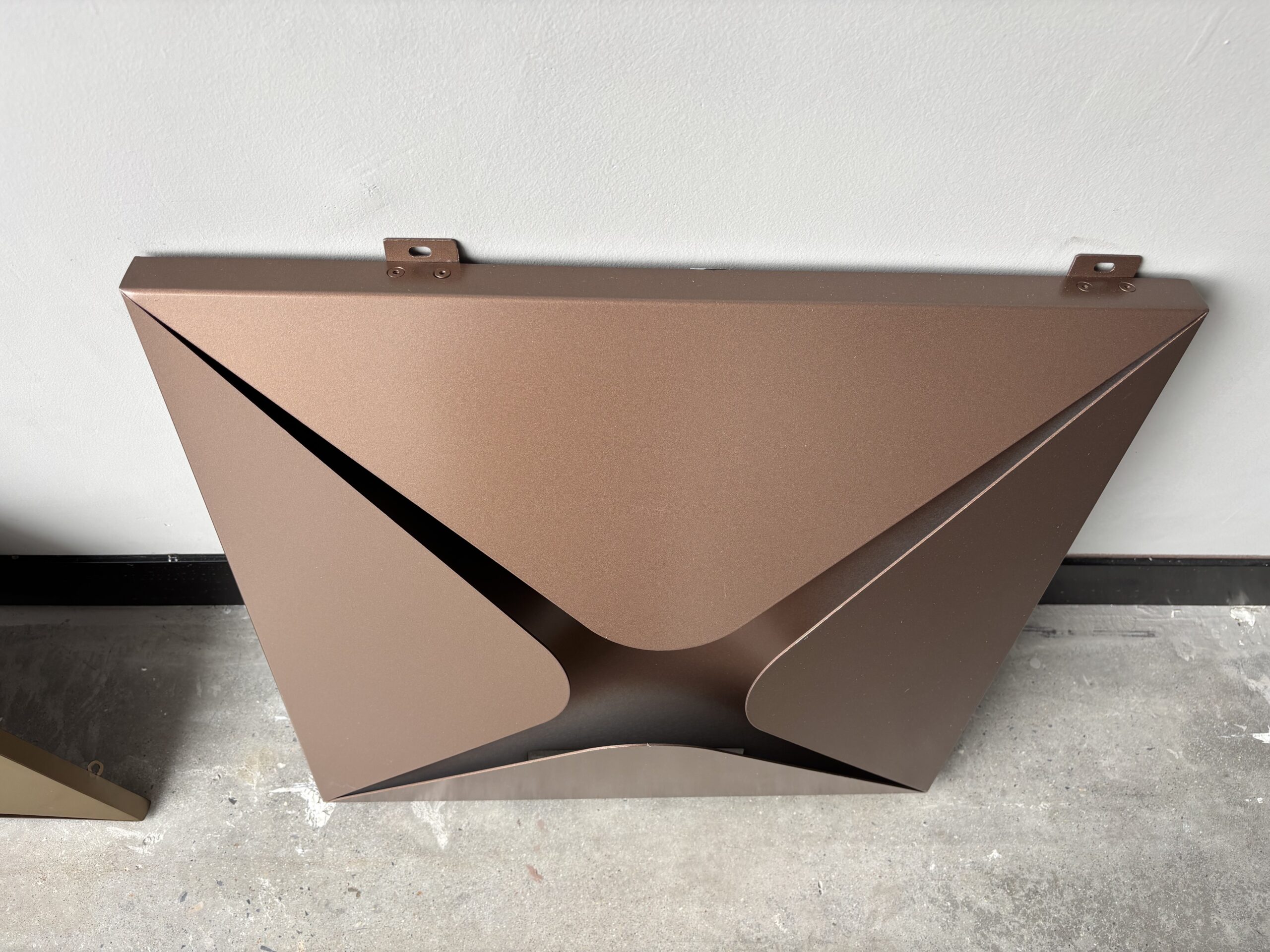

Rose gold PVD stainless steel honeycomb panel folded into an envelope-shaped 3D relief. — Rose gold envelope fold — a signature 3D shape with deep shadow play.

Engineering Details

Standard thickness — 10 mm to 25 mm total (face sheet + honeycomb + back sheet).
Face sheet — 0.6 mm to 1.2 mm 304 / 316 stainless steel, foldable to a 2 mm inner radius without cracking.
Core — 3003 / 5052 aluminum honeycomb, 6 mm to 19 mm cell, structural adhesive bond.
Back sheet — galvanized or stainless backer for rigidity and corrosion protection.
Edge — folded return edge or welded stainless trim; pre-drilled rivet holes at 100–150 mm centres.
Mounting brackets — stainless Z-clip or L-bracket, factory-welded to back, plug-and-fix on site.
Max panel size — up to 1220 × 2440 mm in a single piece; larger assemblies are seamed on site.

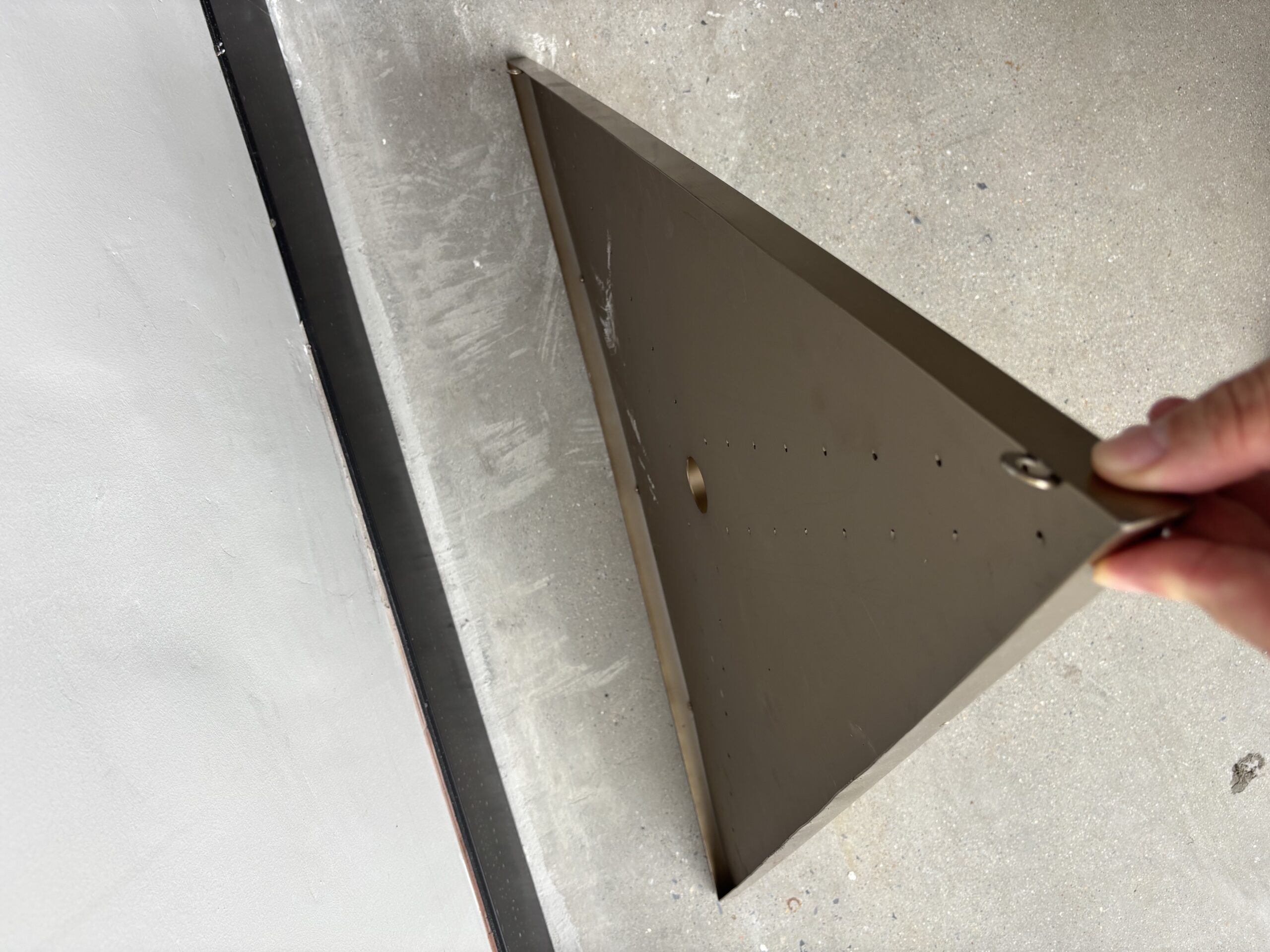

Close-up of stainless steel honeycomb panel edge with pre-drilled rivet holes for hidden mounting. — Pre-drilled rivet holes along the folded edge — engineered for invisible mechanical fixing.

Where These Panels Are Used

The combination of metallic surface, geometric depth, and light weight makes stainless steel honeycomb panels a popular cladding for high-traffic interior and exterior architecture:

Hotel lobbies & reception walls — feature backdrops behind front desks, elevator surrounds, and corridor accent walls.
Restaurant & bar interiors — wine-display walls, bar fronts, signature photo walls, ceiling coffers.
Retail flagship stores — brand walls, fitting-room feature panels, cash-wrap surrounds.
Corporate lobbies — reception feature walls, boardroom ceilings, branded art installations.
Column covers & pillar cladding — wrap square or round structural columns with a continuous folded pattern.
Ceiling features — back-lit or mirror-finish ceilings in ballrooms, atriums, and entrance canopies.
Elevator cab interiors — back wall, side walls, and ceiling in a matching finish for a seamless metallic cabin.
Facade & canopy cladding — entrance canopies, porte-cochères, sun-shading fins, exterior feature bands.
Villa & residence interiors — TV backdrops, staircase feature walls, wine-cellar and home-cinema cladding.

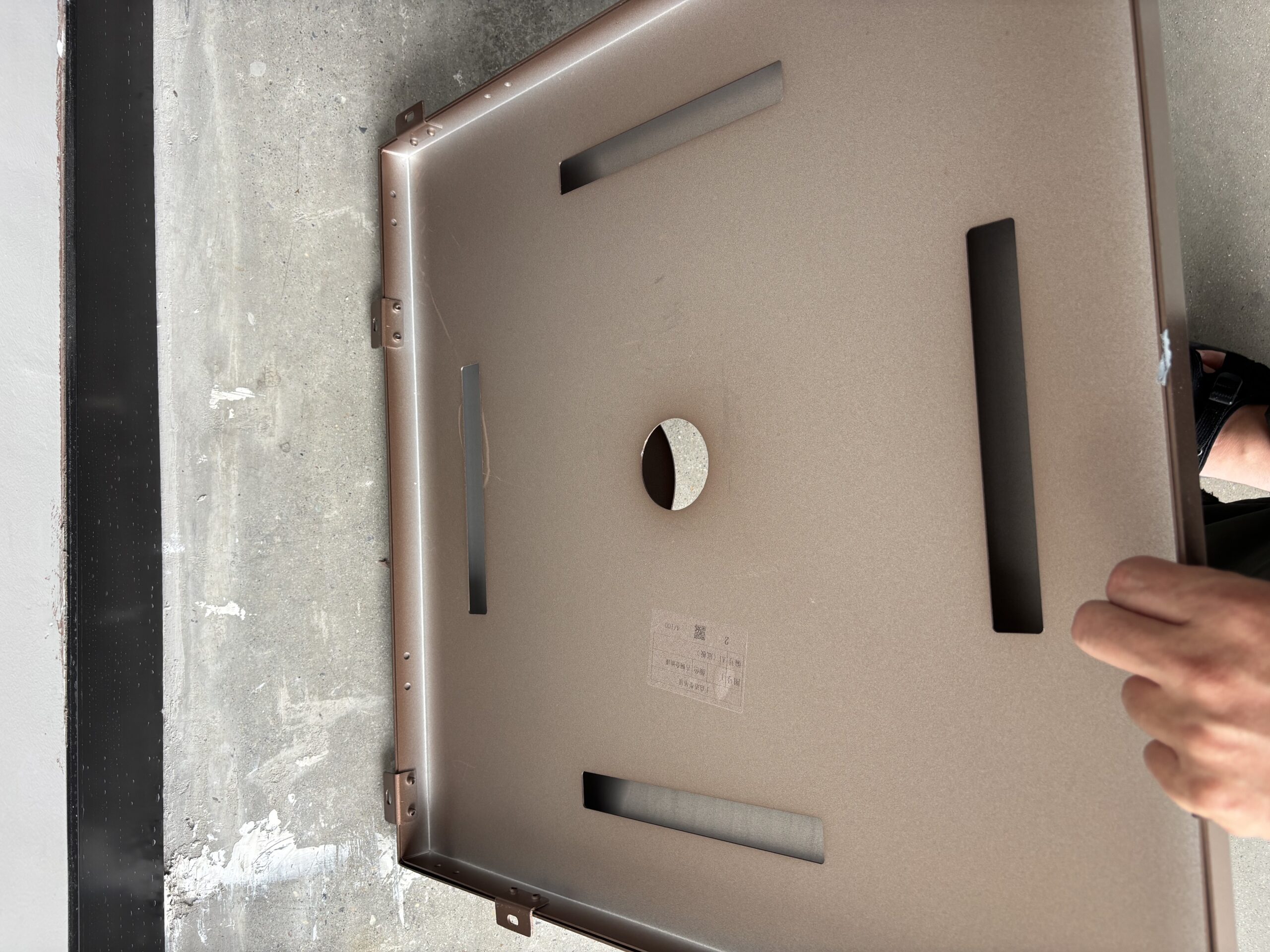

Back view of stainless steel honeycomb panel showing aluminum honeycomb core and pre-welded mounting brackets. — Aluminum honeycomb core with pre-welded stainless mounting brackets — ready for clip-on installation.

Factory-Direct Ordering from ARTDSN

ARTDSN is a China-based manufacturer of stainless steel architectural products. We produce the honeycomb panel, fold the face sheet, weld the brackets, and pack for export in our own workshop — no middlemen. Typical lead time is 15–25 working days after drawing approval, and we ship FOB, CIF, or DDP worldwide.

Send your drawing, finish sample request, or quantity take-off to artdsn.com for a direct factory quote. Reference finishes, fold patterns, and edge profiles from the gallery above.
