When a tile installation needs to do more than just cover a surface — when it needs to protect edges, hide imperfect cuts, frame a shower niche, or add a metallic accent to a porcelain field — architects and installers turn to metal decorative tile trim. The right profile ties the whole composition together, turning a plain tile field into a finished architectural detail.
This guide explains what metal tile trim is, the profile shapes available, the materials and finishes most widely used, and how to select the right product for residential, commercial, and hospitality projects. ARTDSN has manufactured decorative metal trim for over 15 years — the recommendations below reflect what our OEM and contractor clients actually spec on real jobs.
Metal Decorative Tile Trim — Profiles, Materials & Finishes
What Is Metal Decorative Tile Trim?
Metal tile trim is a profile installed along the exposed edges of a tile installation. It serves four practical functions and one decorative one:
- Edge protection — guards the brittle edge of ceramic, porcelain, or stone tile from chipping under impact.
- Clean termination — provides a finished edge where the tile ends against a different material such as drywall, glass, or wood.
- Transition — bridges height or material differences between adjacent floor or wall surfaces.
- Movement accommodation — absorbs minor structural movement in large tile fields when used as an expansion or movement joint.
- Decoration — introduces a contrasting or complementary metallic accent that breaks up a flat tile field and frames the design.
Common Tile Trim Profile Shapes
Trim profiles are named by their cross-section. The shapes below cover the vast majority of installations you’ll encounter on a job site.
Straight Edge (L-Shape) Trim
The workhorse of the category. A right-angle profile with a vertical face and a horizontal anchoring leg. Used wherever tile meets a different surface — at wall corners, around window reveals, and at the termination of a tile field. Straight edge trim is the most common choice for both floor and wall applications.

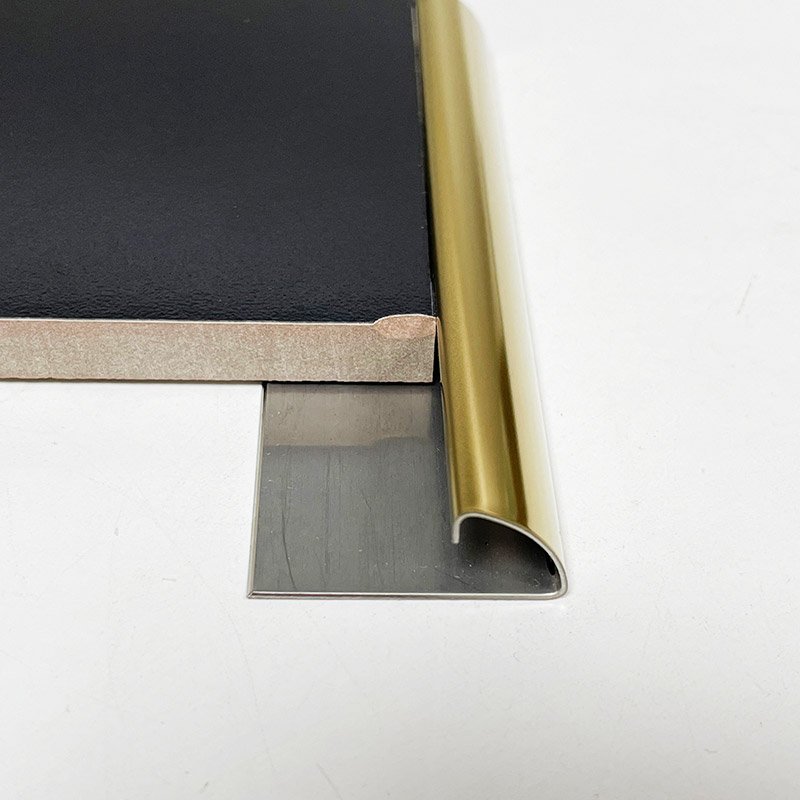

Round Edge (Quarter Round) Trim
A convex curved face that softens the tile edge. The standard recommendation for bathroom walls, shower niches, kitchen backsplashes, and any application where a sharp tile edge would be a safety or visual concern. Round edge trim pairs especially well with rectified porcelain and large-format panels.

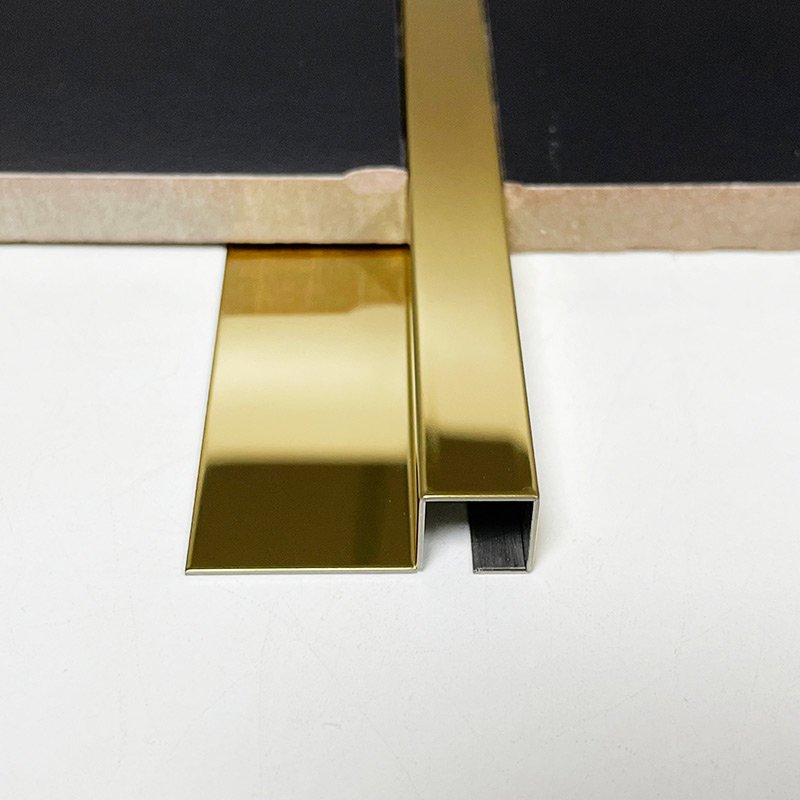

Square Edge Trim
A crisp, right-angle reveal that reads as a deliberate architectural line rather than a softened transition. Used in contemporary and minimalist interiors where the trim is meant to look like a shadow gap or a metal inlay.

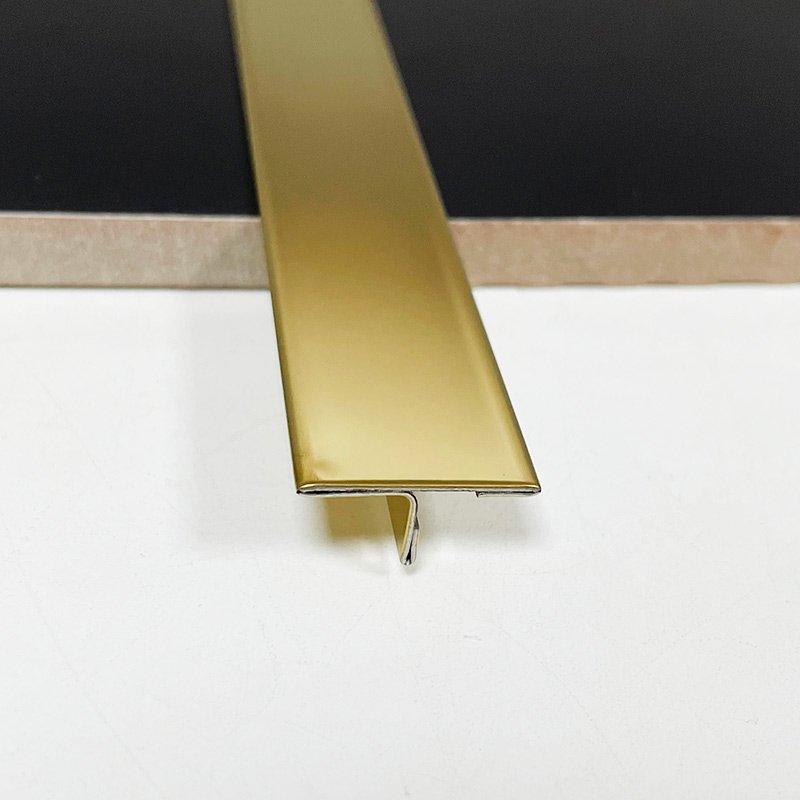

T-Profile Trim
A flat strip with two anchoring legs forming a T in cross-section. Primarily used as a movement / expansion joint between two tile fields, or as a decorative divider that breaks a long tile wall into panels.
Listello (Decorative Inlay)
A narrow, often polished or patterned strip set into the tile field as a horizontal or vertical accent. Listellos are available in stainless steel, brass, aluminum, and resin, and are commonly used in shower walls, kitchen backsplashes, and pool surrounds to introduce a metallic or textural band.

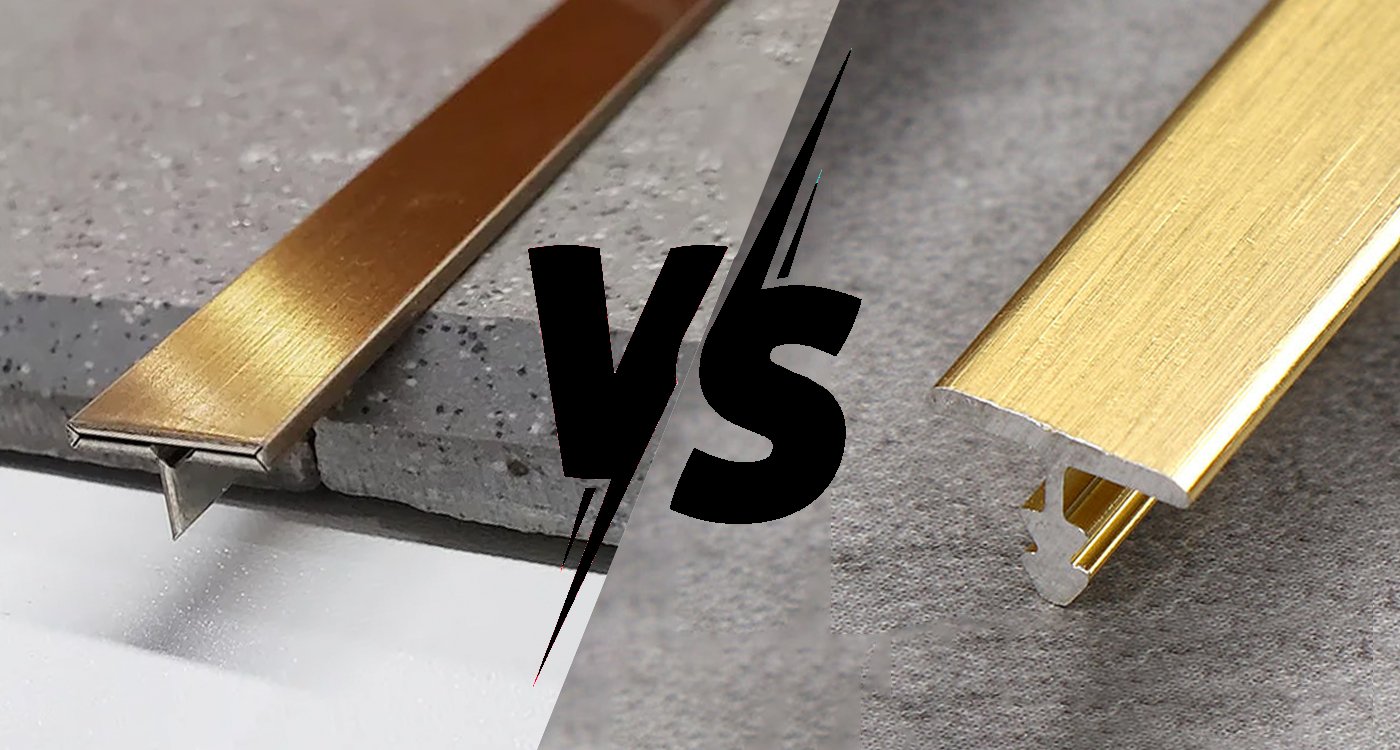

Materials Used for Metal Tile Trim
Material choice is driven by environment, expected lifespan, and finish consistency.
Stainless Steel (304 / 316)
The most specified material worldwide. 304 stainless is suitable for indoor walls, floors, and most commercial applications. 316 stainless is required for outdoor, coastal, pool, and chemical environments where chloride exposure is expected. Stainless can be polished to mirror, brushed to a satin grain, or PVD-coated to gold, rose gold, black, bronze, and champagne tones.
Aluminum
Lightweight and economical. Most aluminum trims are anodized (silver, champagne, bronze, black) rather than PVD coated. Anodized finishes are durable for indoor residential use but wear faster than PVD stainless in high-traffic commercial settings.
Brass
Specified for heritage, hospitality, and high-end residential interiors where a warm gold tone is desired. Solid brass is more expensive than PVD-coated stainless but can be specified when natural aging and patina are part of the design intent.
Finish Options: Brushed, Polished, PVD, Anodized
Finish determines both appearance and long-term performance. The four finishes below are the most commonly ordered from ARTDSN.
- Brushed (satin) — a uniform directional grain that hides fingerprints. The default choice for commercial and hospitality projects.
- Polished (mirror) — reflective chrome-like finish. Used for feature walls, lobby accents, and high-gloss tile combinations. Shows fingerprints and water spots; specify a protective film on site.
- PVD (Physical Vapor Deposition) — a titanium-nitride or zirconium-nitride coating bonded to stainless at the molecular level. Available in gold, rose gold, champagne, bronze, black, and gunmetal. PVD is the most scratch- and fade-resistant colored finish available; it is rated for outdoor use.
- Anodized — an electrochemical oxide layer on aluminum. Most common in silver, champagne, and bronze. Lower cost than PVD stainless but with shorter service life in high-traffic areas.

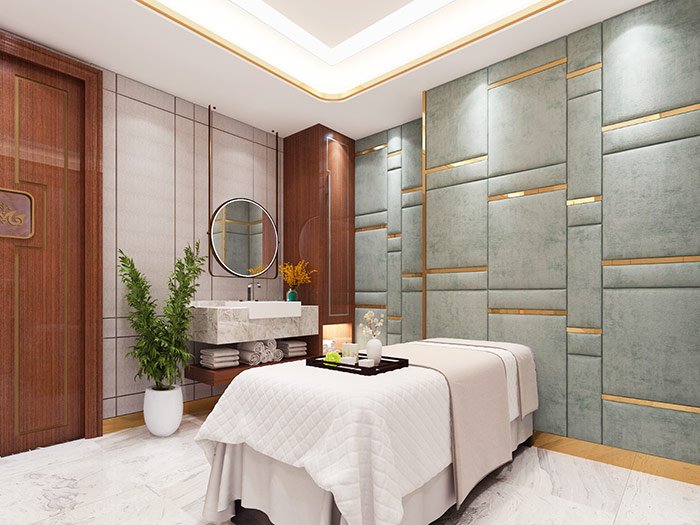

Where Metal Tile Trim Is Used
Metal trim is specified wherever tile terminates, transitions, or needs to be accented. The most common applications are illustrated below.
The most common applications:

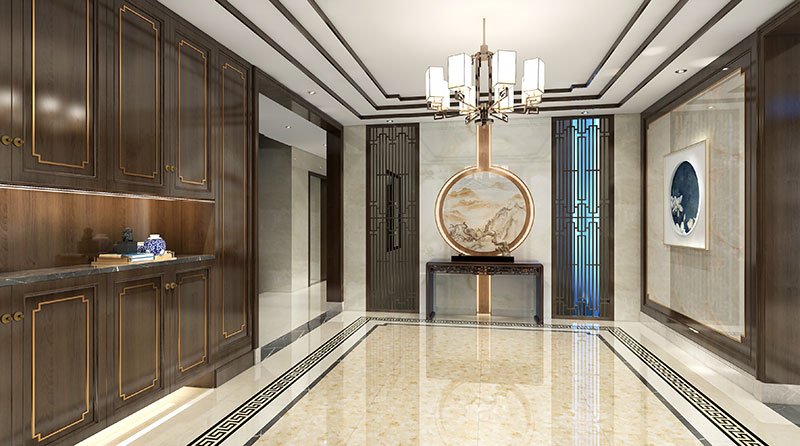

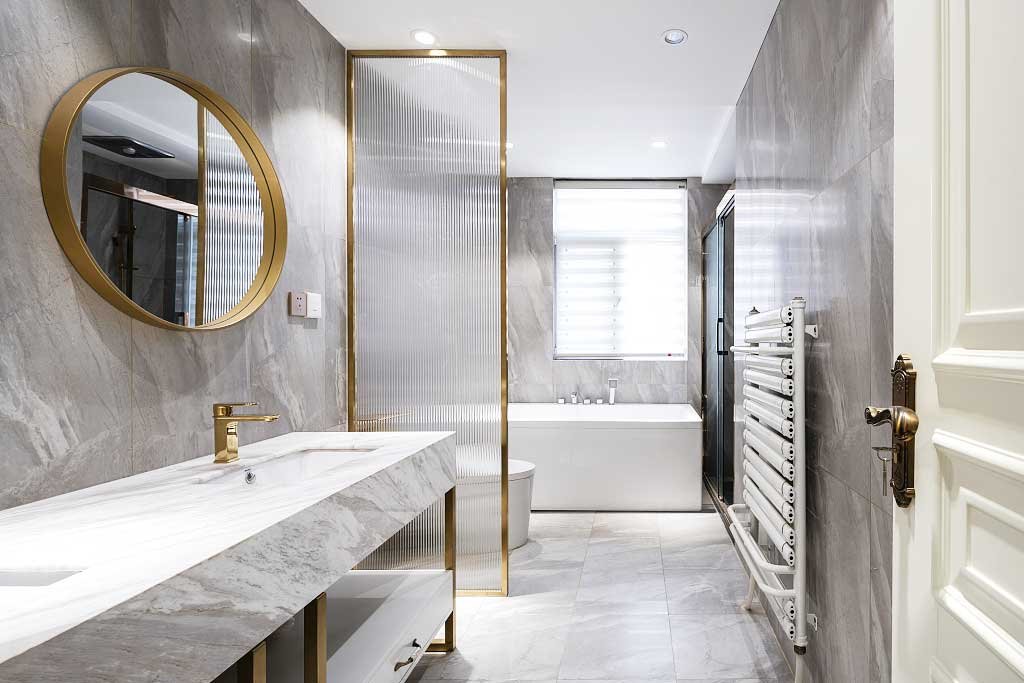

- Bathrooms and showers — wall corners, shower niches, curb edges, and ceiling-to-wall transitions

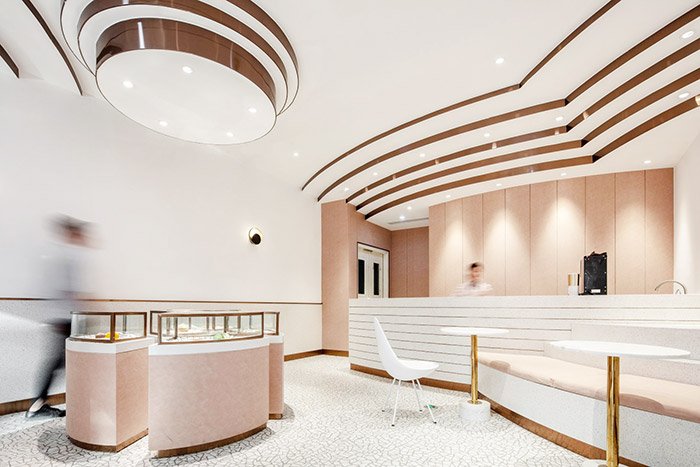

- Kitchen backsplashes — termination at countertop, window reveals, and decorative listello bands
- Floor-to-wall transitions — where tile meets carpet, wood, or vinyl in adjoining rooms
- Movement / expansion joints — T-profiles bridging large tile fields in lobbies, airports, and shopping centers

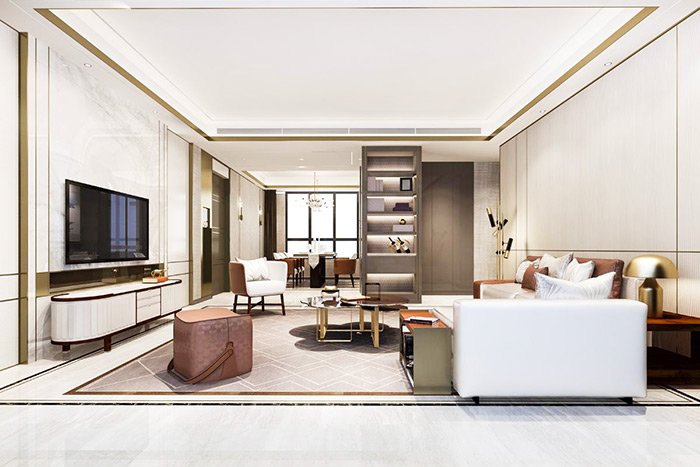

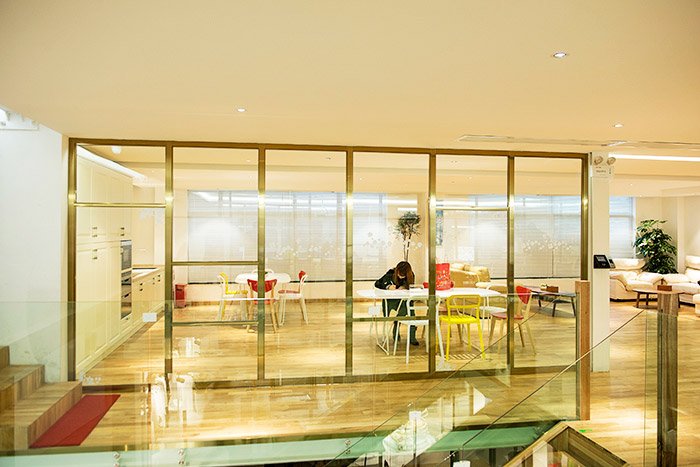

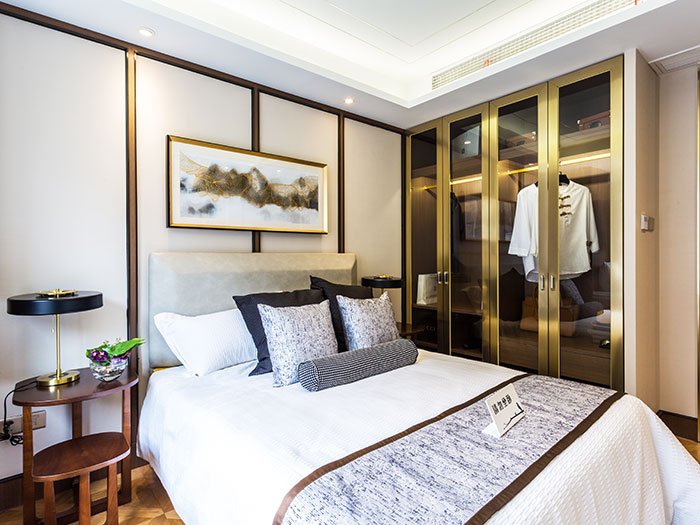

- Feature walls and lobbies — square-edge or listello profiles used as a deliberate metallic reveal
- Pool surrounds and outdoor kitchens — 316 stainless with PVD or polished finish
- Stairs and step nosing — anti-slip grooved or ridged aluminum or stainless profiles

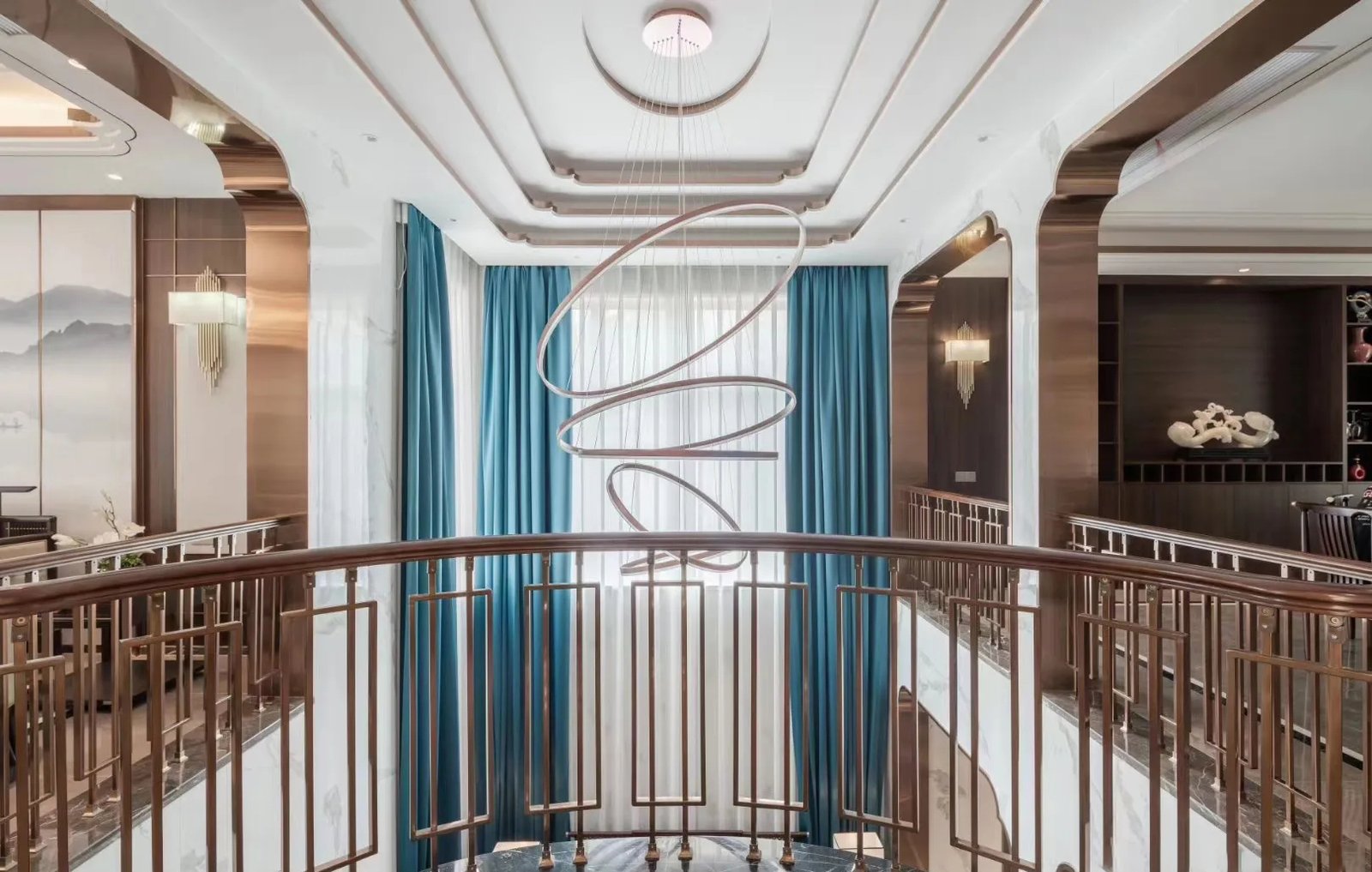

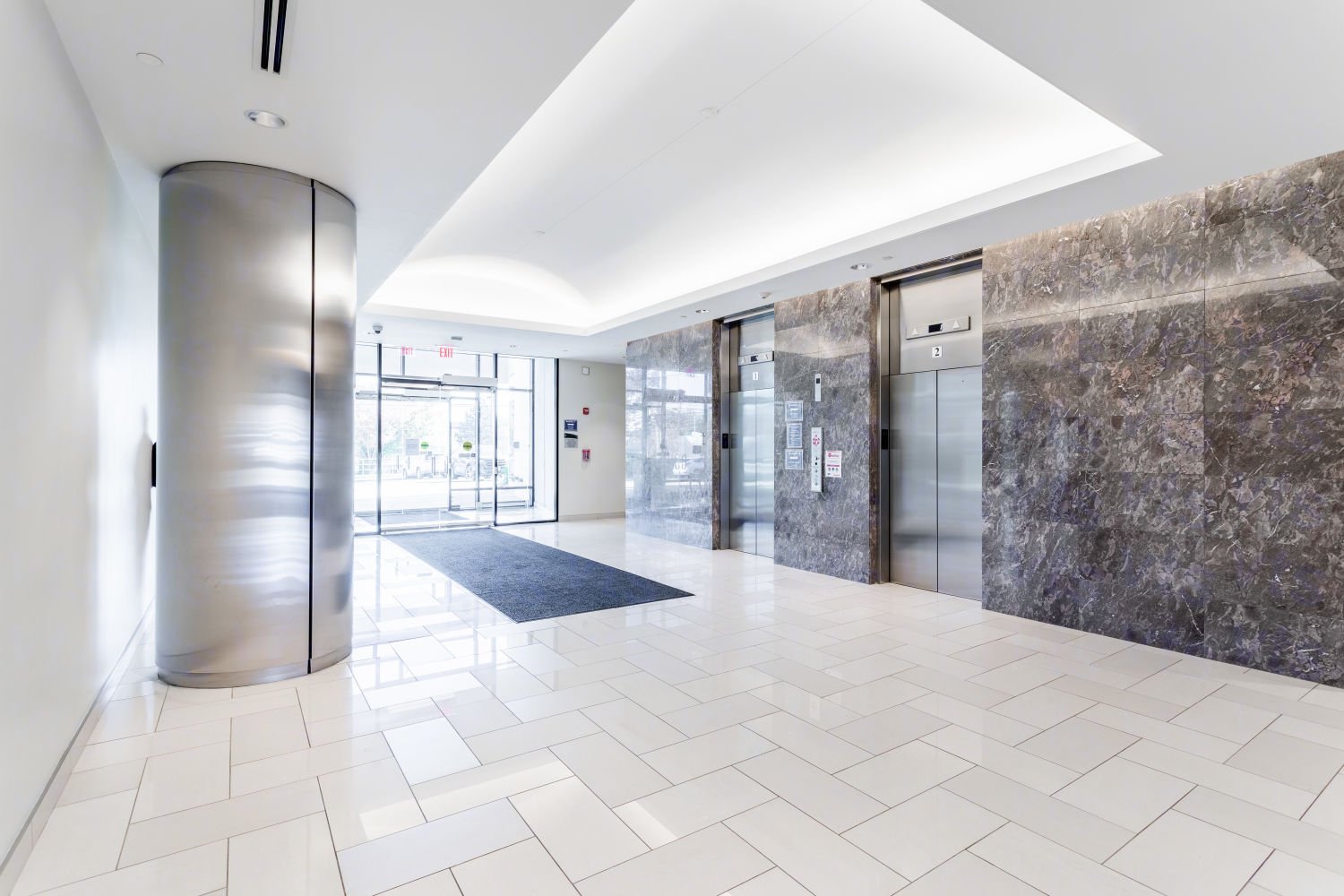

Door Frames, Skirting & Ceiling Trims

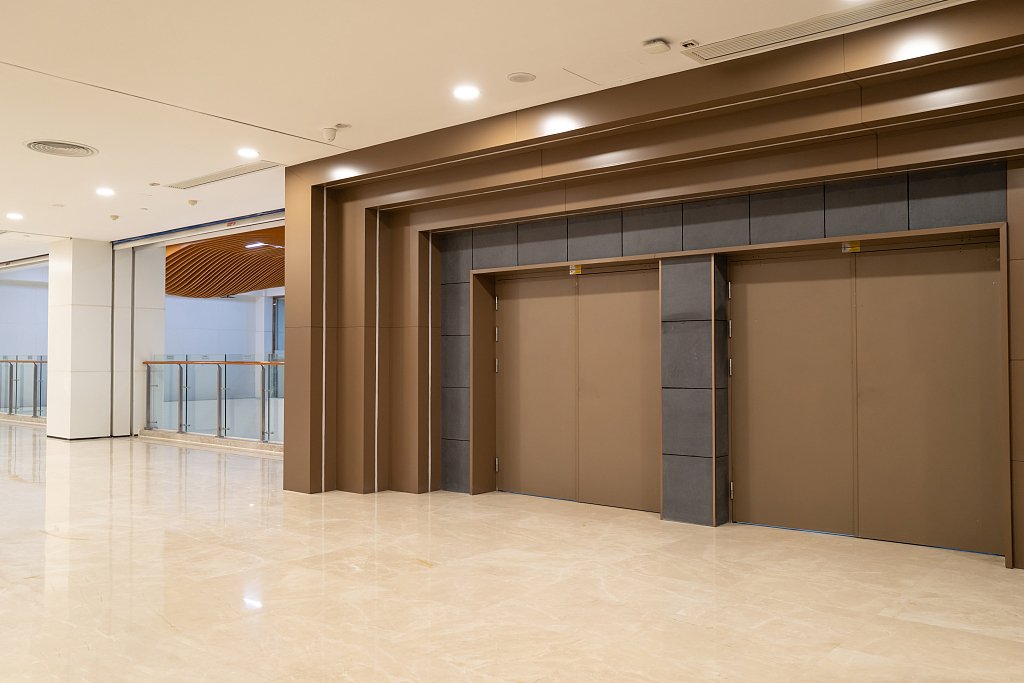

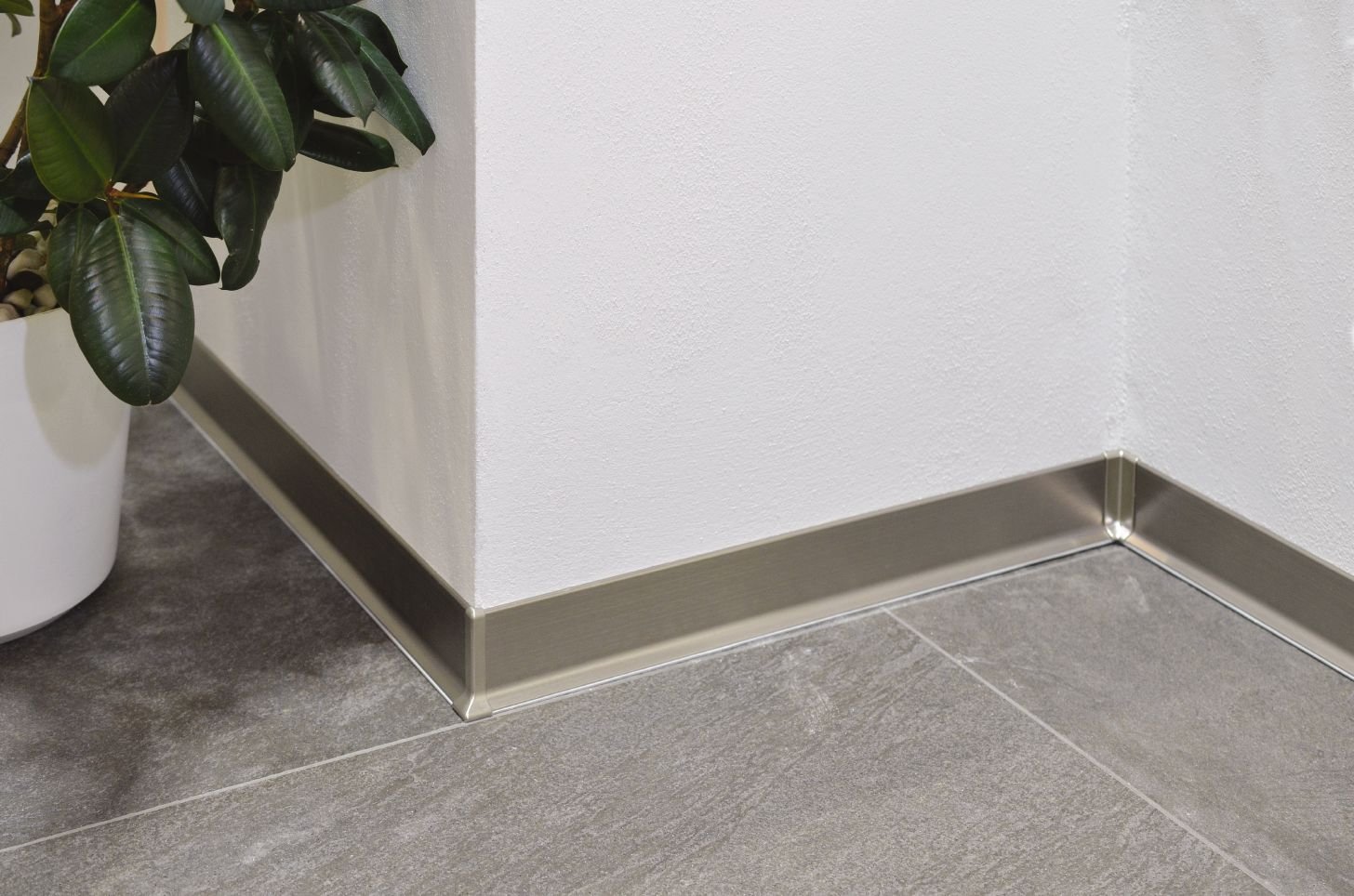

Beyond tile edge protection, the same metal profiles are widely used as door frame surrounds, skirting (baseboard) trim, and ceiling shadow-gap molding. ARTDSN supplies these in matched finishes so a single PVD color can run continuously from floor trim to ceiling line to door frame.
How to Choose the Right Tile Trim
Three quick decisions will get you to the correct product:
- Measure your tile thickness — the trim depth must match or exceed the tile depth by 0.5–1mm to allow for adhesive.
- Pick the profile shape — straight, round, square, T-profile, or listello, based on the design intent.
- Choose the finish — match or contrast your tile color, and select the material grade appropriate for the environment.
If you’re unsure, our team at ARTDSN can recommend a profile and send free samples within 3–5 days.
Why Choose ARTDSN for Your Tile Trim Project
- 15+ years of OEM/ODM experience for global tile trim brands and contractors
- 10,000+ profiles in stock across straight, round, square, T, listello, and custom shapes
- Custom tooling available — share a drawing, get a CAD sample in 7 days
- PVD color matching to any RAL, Pantone, or supplied reference
- Strict quality control — mill cert traceability for every stainless coil
- Fast global shipping from 3 warehouses (China, UAE, USA)
Request a Quote or Free Sample
Ready to specify decorative metal tile trim for your next project? Send us your tile thickness, profile preference, finish color, and quantity — we’ll respond within 24 hours with a detailed quote and CAD drawings.
